SHIMANO DI2 COMPATIBLE
Effortlessly adjust your light settings through Shimano Di2 buttons, as accessible as shifting gears.
EVO 1700SD SHIMANO DI2 BIKE LIGHT
Max Output
1700
lumens
Max Runtime
11
hours
System Compatibility
Shimano Di2
Compatible
BEAM PATTERN
Cut-off low beam
MAX THROW
205
m
BODY MATERIAL
Aluminum alloy + plastic
BATTERY
4000
mAh
CHARGING TIME
5 hrs (5V/1A)
Full Charge
WATERPROOF
IPX6
Weight
151
g
| MODE | LUMENS | RUNTIME | |
|---|---|---|---|
| LOW BEAM | LOW | 200 LM | 11:00 |
| MEDIUM | 400 LM | 05:30 | |
| HIGH | 800 LM | 03:00 | |
| HIGH BEAM | LOW | 400 LM | 06:00 |
| MEDIUM | 800 LM | 03:00 | |
| HIGH | 1700 LM | 02:00 | |
| FLASH | DAY FLASH | 0–1700 LM | 05:00 |
| NIGHT FLASH | 400–1700 LM | 03:30 | |
Runtime shown in hours and minutes
h:min
EVO 1700SD Shimano Di2 Bike Light
EVO 1700SD SHIMANO Di2 COMPATIBLE BIKE LIGHT
The EVO 1700SD delivers 1700 lumens in the same compact design as the EVO 1700. With direct Shimano Di2 integration, it eliminates the need for a separate remote, offering a cleaner cockpit and easier, safer control while riding.
LOW BEAM AND HIGH BEAM
LOW BEAM: Shines with a distinct cut-off line, glare-free for oncoming road users.
HIGH BEAM: Increases coverage and distance, enough for dark path, trails or fast riders.
QUICK RELEASE
Enjoy the flexibility of the GoPro quick-release feature while keeping your cockpit organized and tidy.
USB-C CHARGE PORT
Rely on the robust 4000mAh capacity for up to 11 hours of runtime. The USB-C port charges the battery, making it ready for any adventure.
EASY-TO-READ-INDICATOR
Stay informed with an easy-to-read power indicator displaying the remaining power, ensuring you're never left in the dark.
IPX6 WATERPROOF
Face adverse weather confidently with the IPX6 waterproof rating, ensuring reliability in all weather conditions.
PRODUCT COMPARISON
Compare different products based on their features.
| MODEL |
EVO 1700SD
|
EVO 1700 UT
|
EVO 1700 PRO
|
EVO 1700
|
|---|---|---|---|---|
| Max Lumen | 1700 lumens | 1700 lumens | 1700 lumens | 1700 lumens |
| Max Runtime | 11 hours | 17 hours | 14 hours | 11 hours |
| ANT+® | ||||
| Shimano Di2 Control | ||||
| FTR LightSync Control | ||||
| Beam Pattern | Cut-off low beam | High beam + Low beam | Cut-off low beam | Cut-off low beam |
| Max Throw | 205 m | 205 m | 205 m | 205 m |
| Anti-Glare | ||||
| Remote Control | ||||
| Beam Intensity | 10520 CD | 10560 CD | 10520 CD | 10520 CD |
| Waterproof Rate | IPX6 | IPX6 | IPX6 | IPX6 |
| Battery Capacity | 4000 mAh | 5200 mAh | 4400 mAh | 4000 mAh |
| Charger | USB-C | USB-C | USB-C | USB-C |
| Charging Time | 5 hrs (5V/1A) | 3 hours (5V, 2A) | 3 hrs (5V/2A) | 5 hrs (5V/1A) |
| Weight | 151 g | 175 g | 165 g | 151 g |
| Dimension | 42*46*53 mm | 44*51*57 mm | 42*51*57 mm | 42*46*53 mm |
| Material | Aluminum alloy + plastic | Aluminum alloy + plastic | Aluminum alloy + plastic | Aluminum alloy + plastic |
| Mounting Type | Under-Bar Mount | Under-Bar Mount | Under-Bar Mount | Under-Bar Mount |
| Mounting System | Out-front mount | Magnetic Snap-and-Lock | Magnetic Snap-and-Lock | Out-front mount |
EVO ACCESSORIES
EVO Series MountQuick-Release Replacement Bracket
Sale priceFrom $6.99 USD
Bracket Type:
EVO 1700 / EVO 1100 — White
Beam (positive)Di2 (positive)Control (positive)Light (positive)Buttons (positive)
R
Right out of the box, this light looks like it has been repaired and reassembled. My previous CBL1600 broke after about a year of use.
A
The light works out of box with my Di2 lever, and the battery is surprisingly good. Very good product for the price.
H
Is there any way to disable the D-FLY CHANNELS 2/4 functionality?
I would like to use the right hood button for another device, but the EVO1700SD seems to occupy both the left and right hood buttons, making it impossible to use them with other devices.
It seems like this could be resolved with a firmware update — are there any plans to add this feature in the future?
G
Excelente producto.
L
I was blown away by the EVO 1700SD’s powerful beam. It's perfect for my late-night rides, and the different brightness settings allow for great adaptability. The build quality feels solid and durable, plus the battery life is impressive. Definitely worth every penny!
R
Light is very good but connecting to my Di2 worked poorly. difficult to connect and then it disconnects often. Also the flashing won't work unless turned on with the Di2. Should have bought the pro and used ANT connection.
E

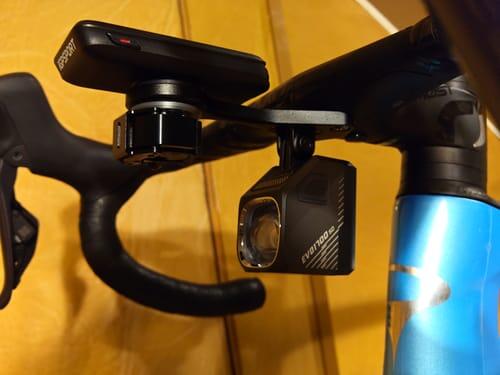

I love this Evo 1700SD. The clean look underneath my garmin computer, the beam cut-off and the integration with my di2.
