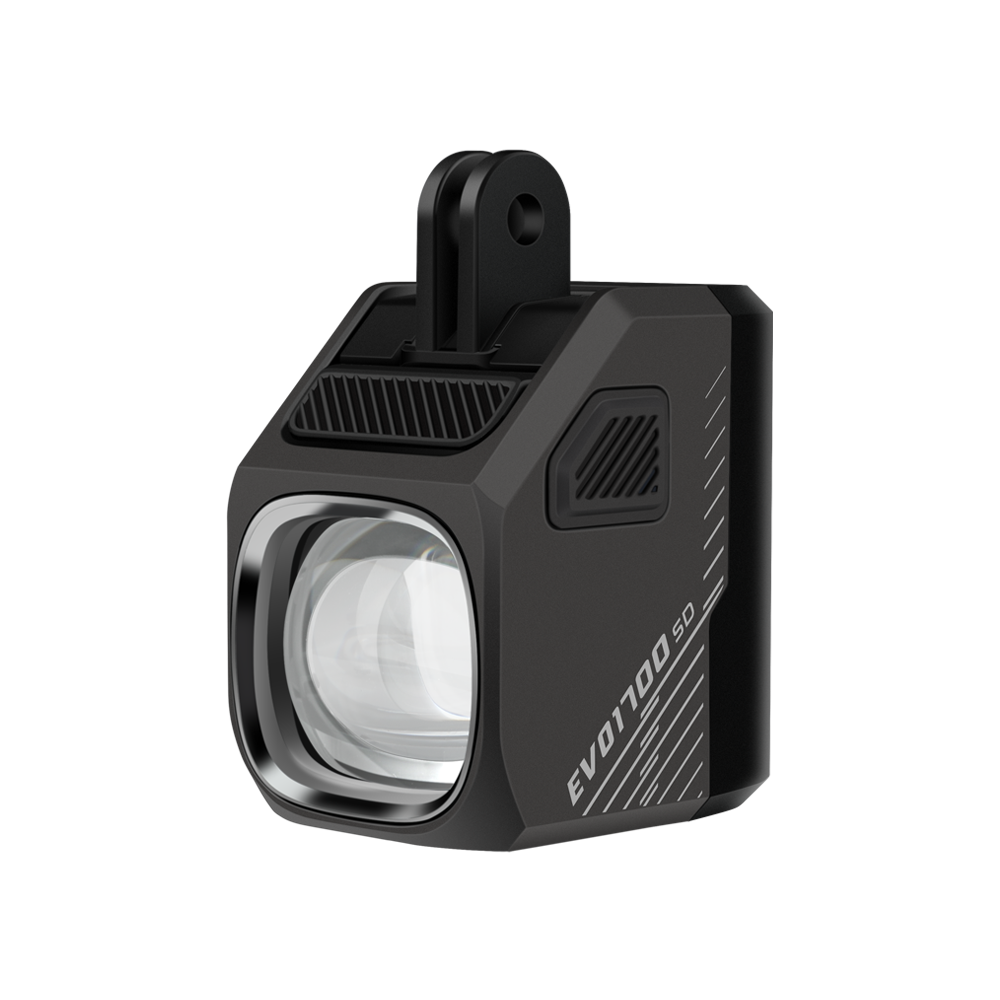

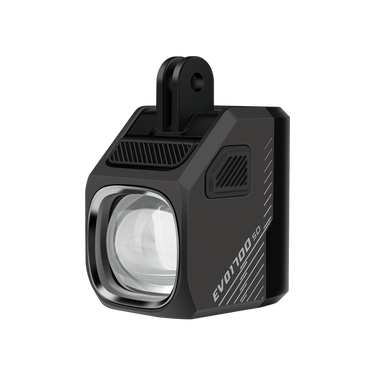

EVO 1700SD Shimano Di2 Bike Light
- Compatible with Shimano Di2 system (wireless unit), can be controlled via the Di2 button.
- Unique combination of up-close low beam and far-reaching high beam.
- Cut-off low beam, glare-free for oncoming road users.
- Customize lighting setting through Magicshine APP.
- USB-C rechargeable.
- Lock function to avoid mis-operation.
- Memory function saves the last selected mode.
- Robust aluminum housing for efficient heat management and optimum performance.
| MODE | LUMENS | TIME (h:min) | |
|---|---|---|---|
| LOW BEAM |
LOW | 200LM | 11:00 |
| MEDIUM | 400LM | 05:30 | |
| HIGH | 800LM | 03:00 | |
| HIGH BEAM |
LOW | 400LM | 06:00 |
| MEDIUM | 800LM | 03:00 | |
| HIGH | 1700LM | 02:00 | |
| FLASH | DAY FLASH | 0-1700LM | 05:00 |
| NIGHT FLASH | 400-1700LM | 03:30 | |

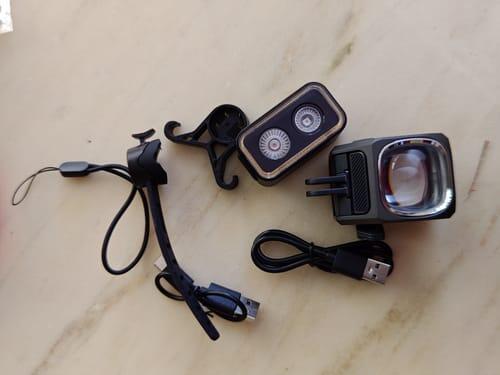

- EVO 1700SD x1
- USB-C charging cable x1
- Tether x1
- User manual x1
Fast, Reliable Delivery
Global shipping to most countries with real-time tracking. Orders are processed within 1-2 business days, and most arrive within 5-10 business days. Delivery times may vary by location. Learn more
Hassle-Free Warranty
Magicshine provides a straightforward, hassle-free warranty to save you some headaches. All prouducts come with their own unique warranty. Learn more
Easy Returns & Exchanges
Please refer to our Returns and Exchanges Policy for more details on a smooth returns process. Learn more
The EVO 1700SD maintains the impressively compact housing of the EVO 1700, packing a powerful 1700 lumens to light your path. The difference lies in its streamlined integration. Without the need for a remote control, the EVO 1700SD connects directly to your bike’s Shimano Di2 system. This integration not only enhances the aesthetics of your setup by reducing clutter but also significantly improves accessibility and safety.
SHIMANO DI2 COMPATIBLE
Effortlessly adjust your light settings through Shimano Di2 buttons, as accessible as shifting gears.
LOW BEAM AND HIGH BEAM
LOW BEAN: Shines with a distinct cut-off line, glare-free for oncoming road users.
HIGH BEAM: Increases coverage and distance, enough for dark path, trails or fast riders.
QUICK RELEASE
Enjoy the flexibility of the GoPro quick-release feature while keeping your cockpit organized and tidy.
USB-C CHARGE PORT
Rely on the robust 4000mAh capacity for up to 11 hours of runtime. The USB-C port charges the battery, making it ready for any adventure.
EASY-TO-READ-INDICATOR
Stay informed with an easy-to-read power indicator displaying the remaining power, ensuring you're never left in the dark.
IPX6 WATERPROOF
Face adverse weather confidently with the IPX6 waterproof rating, ensuring reliability in all weather conditions.
RD-R9250
RD-R8150
RD-R7150
RD-RX825
SPECIFICATIONS
MAX OUTPUT
1700 LUMENS
RUNTIME
2-11 hours
MAX THROW
205 m
BEAM PATTERN
Cut-off low beam
BATTERY CAPACITY
3.6V, 4000mAh
CHARGING TIME
5 hours (5V,1A)
BODY MATERIAL
Aluminum+plastic
WARRANTY
2 years
- EVO 1700SD x1
- USB-C charging cable x1
- Tether x1
- User manual x1
Product Comparison
| MODEL |
EVO 1700SD
|
EVO 1700
|
EVO 1300
|
EVO 1100
|
|---|---|---|---|---|
| Max Lumens | 1700 LM | 1700 LM | 1300 LM | 1100 LM |
| Runtime | 2-11 hrs | 2-11 hrs | 2-15 hrs | 2.5-15.5 hrs |
| Vibration Sensor | ✖️ | ✖️ | ✖️ | ✖️ |
| Brightness Sensor | ✖️ | ✖️ | ✖️ | ✖️ |
| App Customization | ⚫️ | ⚫️ | ⚫️ | ⚫️ |
| Beam Pattern | Cut-off low beam | Cut-off low beam | Cut-off low beam | Cut-off low beam |
| Beam Angle | 21° | 21° | 21° | 21° |
| Max Throw | 205 m | 205 m | 150 m | 220 m |
| Shimano Di2 Compatible | ⚫️ | ✖️ | ✖️ | ✖️ |
| DRL | ✖️ | ✖️ | ✖️ | ✖️ |
| Anti-Glare | ⚫️ | ⚫️ | ⚫️ | ⚫️ |
| Remote Control | ✖️ | ⚫️ | ⚫️ | ⚫️ |
| Beam Intensity | 10520 CD | 10520 CD | 5600 CD | 12100 CD |
| Waterproof Rate | IPX 6 | IPX 6 | IPX 6 | IPX 6 |
| Battery Capacity | 3.6V, 4000mAh | 3.6V, 4000mAh | 3.6V, 3200mAh | 3.7V, 1800mAh |
| Charger | USB-C | USB-C | USB-C | USB-C |
| Charging Time | 5 hrs (5V/1A) | 5 hrs (5V/1A) | 4.5 hrs (5V/1A) | 3 hrs (5V/1A) |
| Weight | 151 g | 151 g | 154 g | 114 g |
| Dimension | 42*46*53 mm | 42*46*53 mm | 92*42*34.5 mm | 45*46*50 mm |
| Material | Aluminum+plastic | Aluminum+plastic | Aluminum | Aluminum+plastic |
| Mounting Type | Underneathed mount | Underneathed mount | Underneathed mount | Underneathed mount |
| Mounting System | Out-front mount | Out-front mount | Out-front mount | Out-front mount |
Swipe up/down for more features
The light works out of box with my Di2 lever, and the battery is surprisingly good. Very good product for the price.
Is there any way to disable the D-FLY CHANNELS 2/4 functionality?
I would like to use the right hood button for another device, but the EVO1700SD seems to occupy both the left and right hood buttons, making it impossible to use them with other devices.
It seems like this could be resolved with a firmware update — are there any plans to add this feature in the future?
Excelente producto.
I was blown away by the EVO 1700SD’s powerful beam. It's perfect for my late-night rides, and the different brightness settings allow for great adaptability. The build quality feels solid and durable, plus the battery life is impressive. Definitely worth every penny!
Big wish: It could be configured to use D-FLY channel 1-3 only.
Currently it occupies both 1-3 AND 2-4 so there are no channels left for my Garmin Edge computer without changing the light too which is a bad design of the DI2 integration and not necessary for such a great device.
Super bad integration with Di2. To few options and desturb other functions... a bit sad. Light is good
Great customer service. Being able to use di2 to control the light is a game changer.
.
Outstanding light, connects to my shifters and allows me to enable high beams with my shift buttons. Amazing!
Love it, great light and works perfect with shimano 105 Di2
Easy handling, long durable battery.
Bright and homogen light.
Illuminates the entire width of the road without dazzling other road users.
For me one of the best lights in market.
Very good lighting I love it.

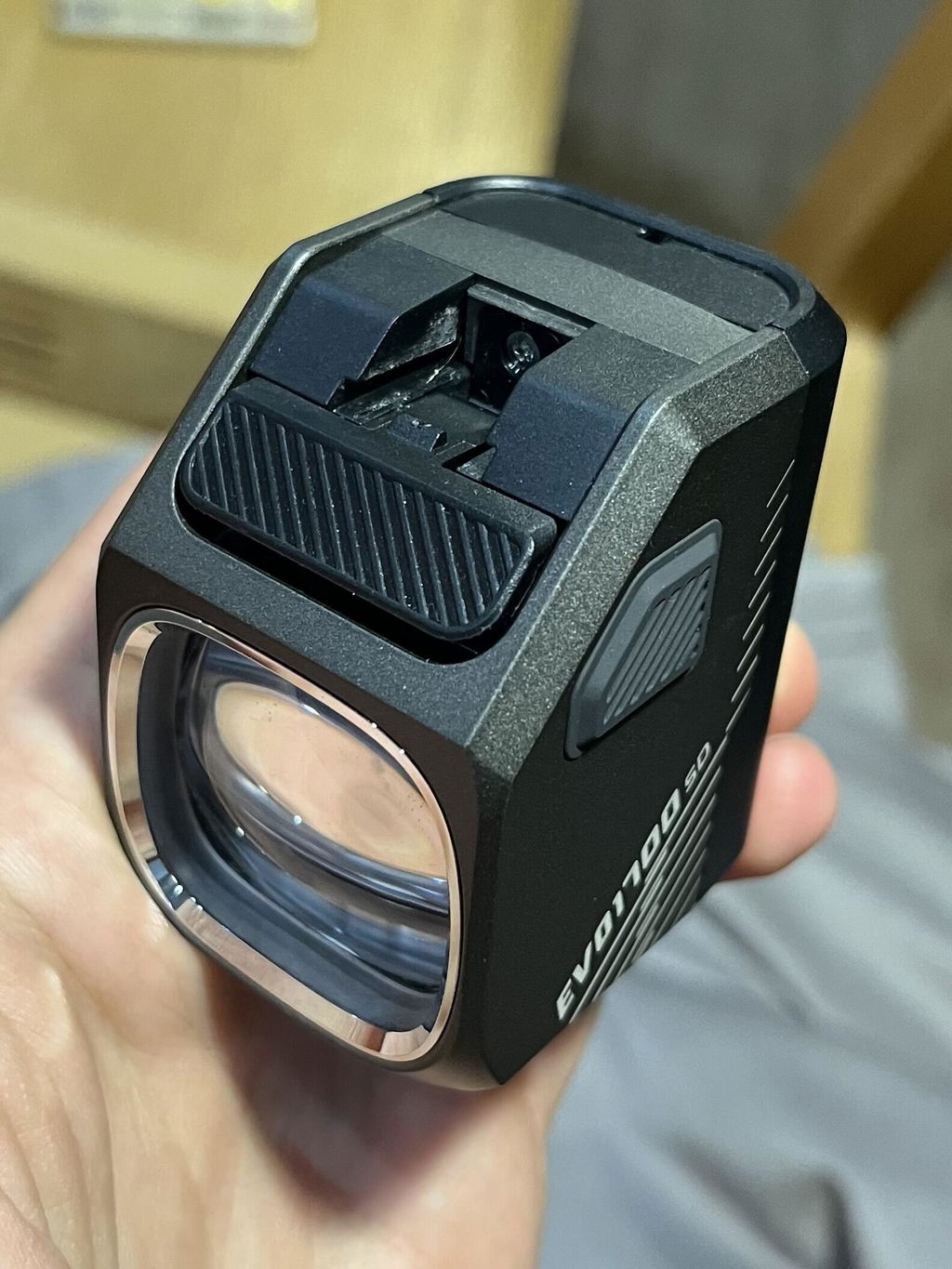

Great product, very bright and the di2 compatibility is great. The cover on the charging port is kind of pulling apart and a daytime blinking function would be a nice addition.
Love the ability to be able to control with the button on the hood of the Shimano. On/off, 3 levels of light intensity. Overall the lighting ahead is good, I can’t comment on battery life yet. Only needing the light for relatively short periods early mornings
Great light.
Love the ability to be able to control with the button on the hood of the Shimano. On/off, 3 levels of light intensity.
Overall the lighting ahead is good, I can’t comment on battery life yet. Only needing the light for relatively short periods early mornings
Great light.
This is fukcing awesome bike light
