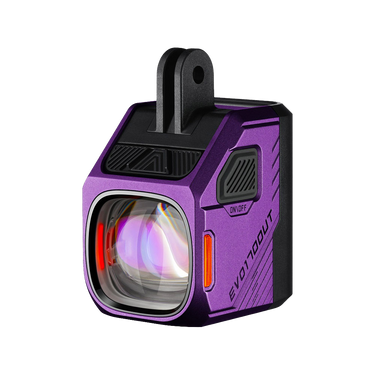

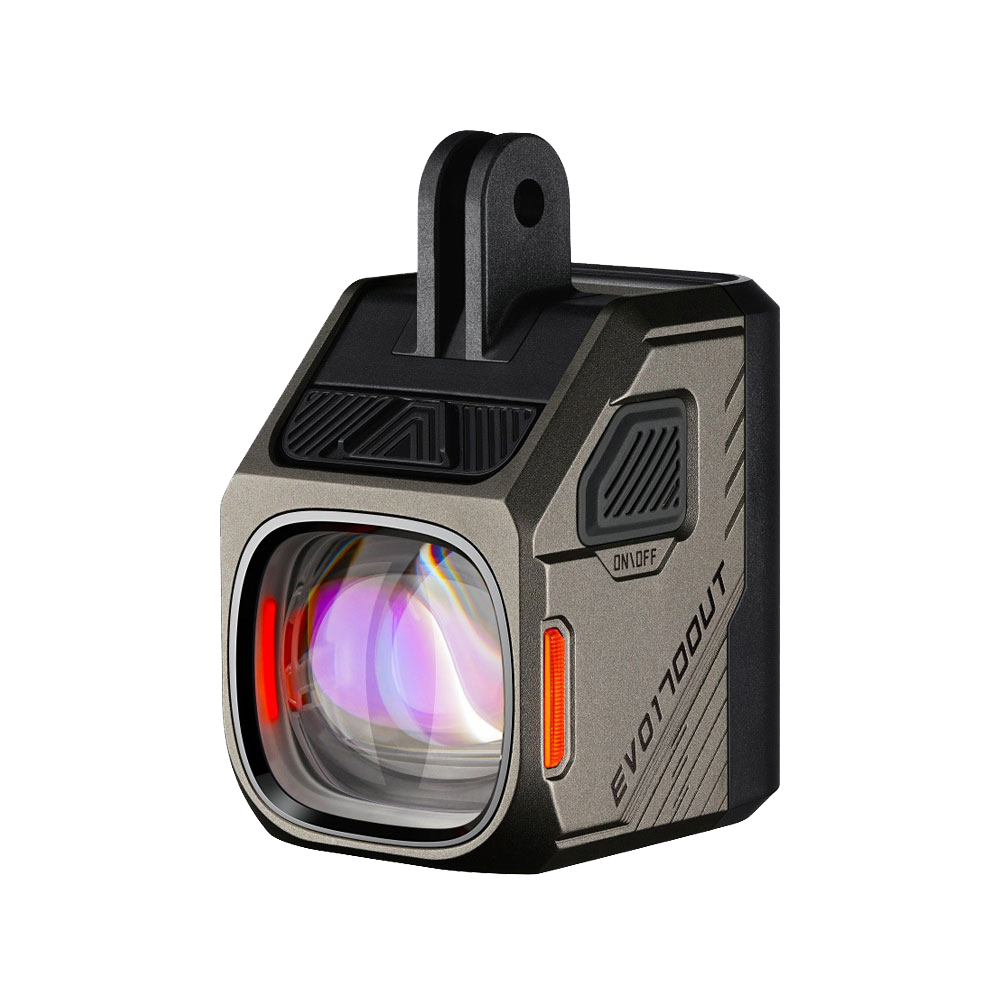

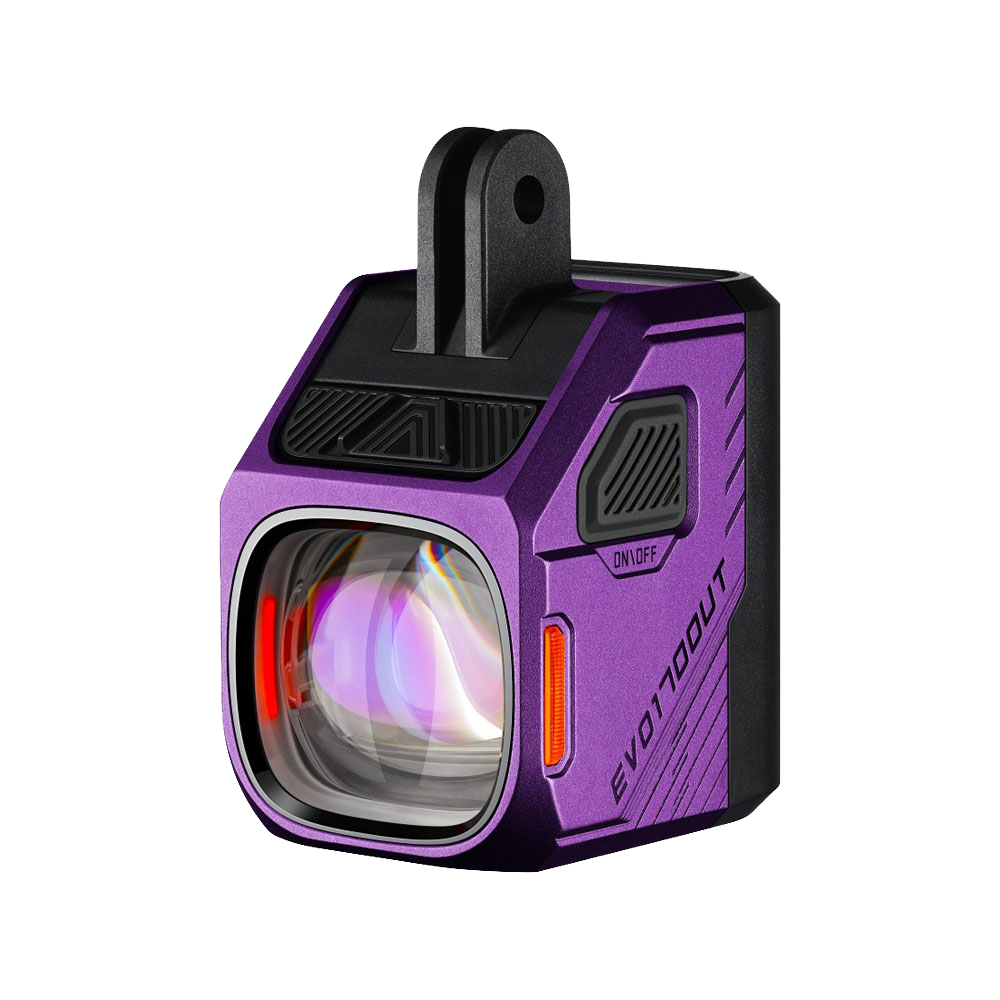

EVO 1700 UT SMART INTEGRATED BIKE LIGHT
- Exclusive MagicLock system for fast, secure mounting.
- Large optical module with advanced optics and sleek design.
- Blue-coated lens for higher light transmission efficiency.
- Automotive-grade cut-off beam for wide, glare-free visibility.
- 1700LM high beam with 206M throw for faster riding confidence.
- Enhanced side visibility for improved road safety.
- ANT+ connectivity for seamless bike computer integration.
- Shimano Di2 control directly from shift levers.
- FTR LightSync syncs front and rear lights automatically.
- Dual 18500 batteries (5200mAh) provide up to 17 hours runtime.
- USB-C fast charging in approximately 3 hours.
- IPX6 waterproof rating for all-weather performance.
- Smart lockout mode prevents accidental activation.
- Customizable modes, memory function, and battery indicator.
| MODE | LUMENS | TIME (h:min) | |
|---|---|---|---|
| LOW BEAM |
LOW | 200LM | 17:00 |
| MEDIUM | 400LM | 09:00 | |
| HIGH | 800LM | 5:00 | |
| HIGH BEAM |
LOW | 400LM | 10:00 |
| MEDIUM | 800LM | 05:00 | |
| HIGH | 1700LM | 03:00 | |
| FLASH | DAY FLASH | 0-1700LM | 10:30 |
| NIGHT FLASH | 400-1700LM | 6:00 | |

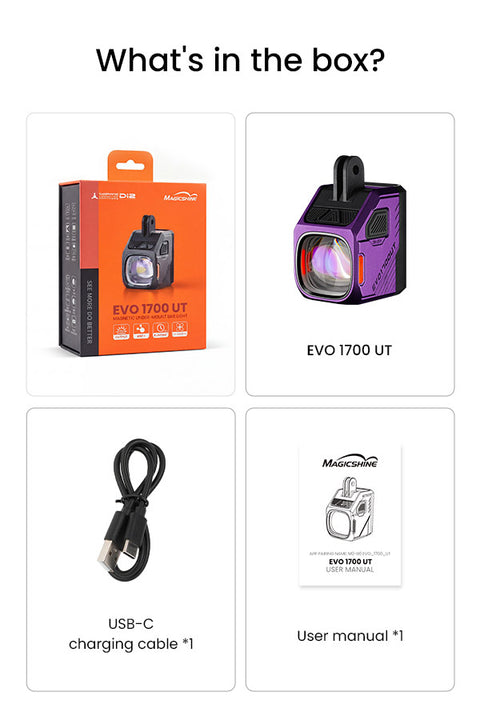

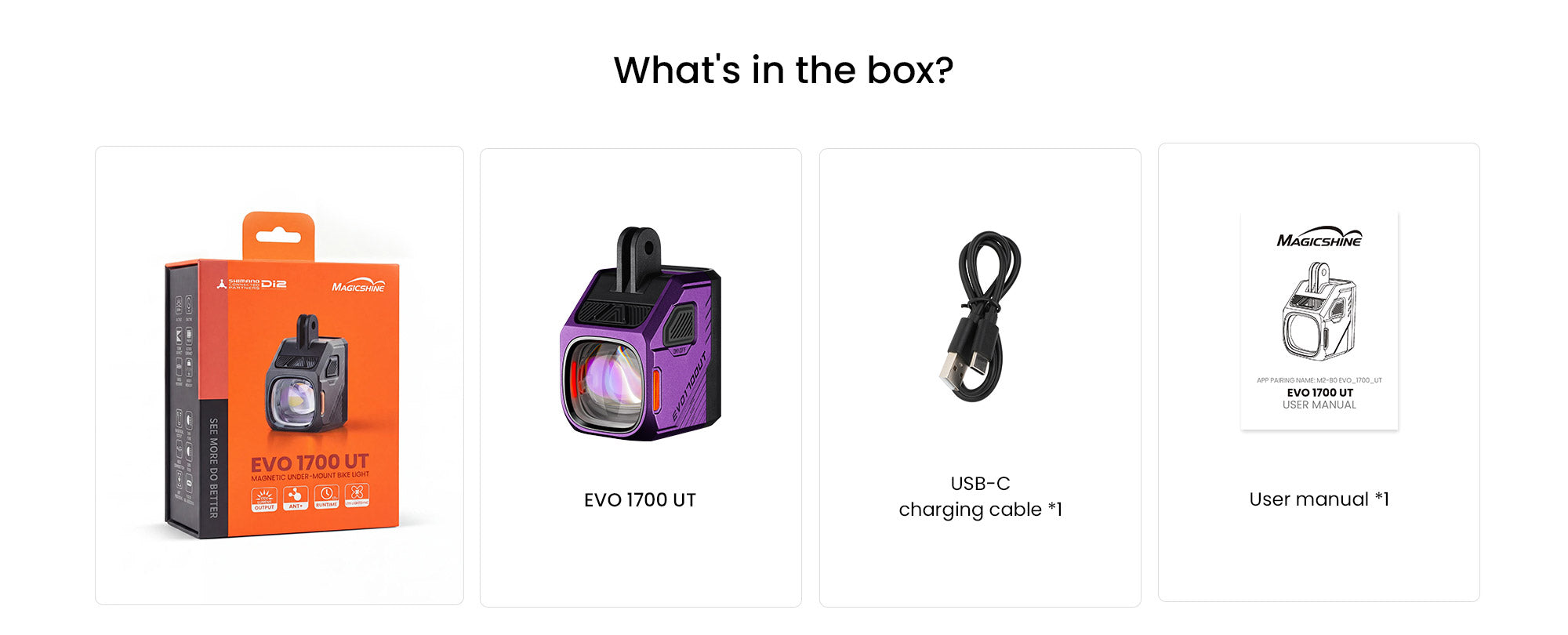

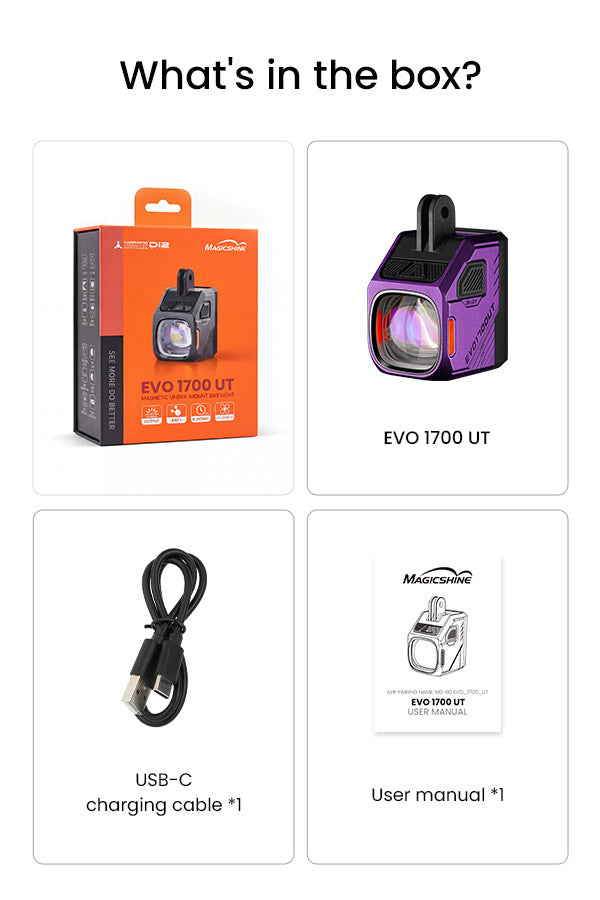

- EVO 1700 UT *1
- USB-C charging cable *1
- User manual *1
Fast, Reliable Delivery
Global shipping to most countries with real-time tracking. Orders are processed within 1-2 business days, and most arrive within 5-10 business days. Delivery times may vary by location. Learn more
Hassle-Free Warranty
Magicshine provides a straightforward, hassle-free warranty to save you some headaches. All prouducts come with their own unique warranty. Learn more
Easy Returns & Exchanges
Please refer to our Returns and Exchanges Policy for more details on a smooth returns process. Learn more
EVO 1700 UT is a fully integrated, high-performance bike light system engineered for advanced road cyclists who demand precision, connectivity, and system-level control. Built as a flagship platform, it represents a new level of integration between lighting, drivetrain, and cycling electronics.

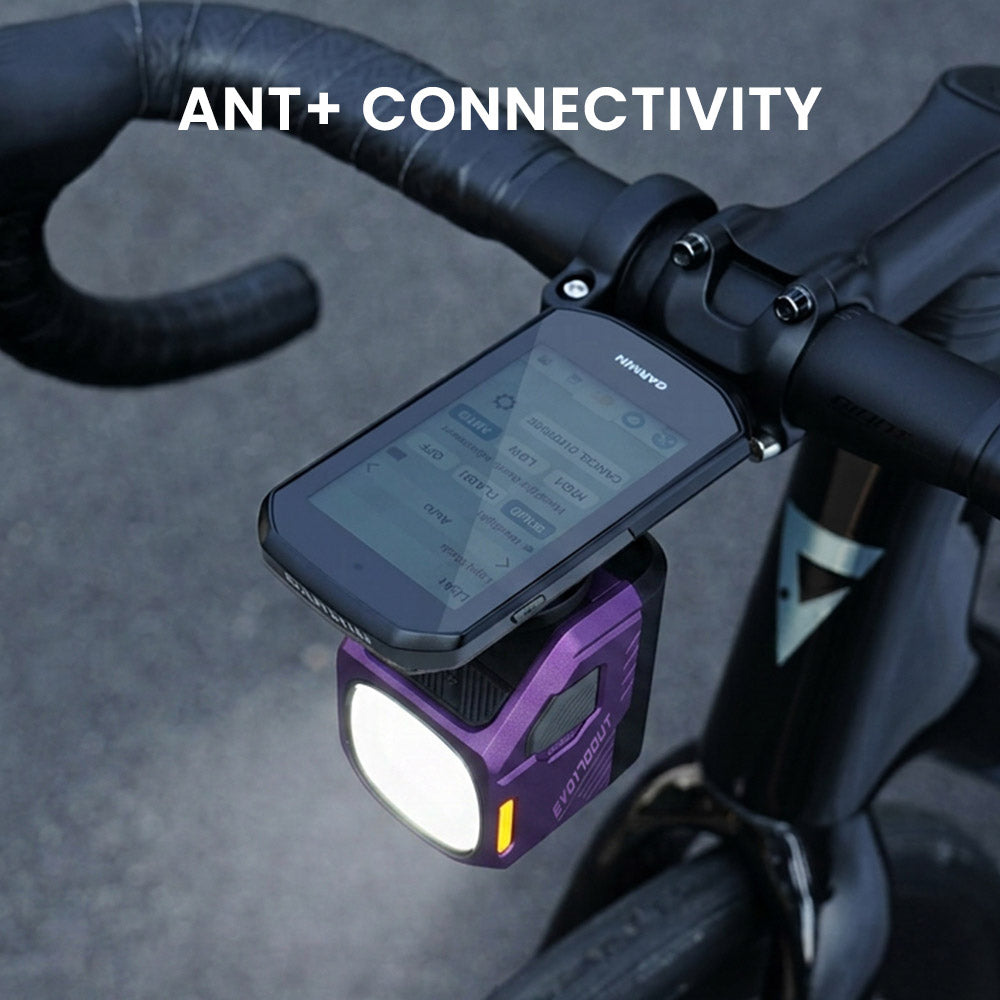

ANT+ CONNECTIVITY
Seamlessly connects with compatible bike computers for integrated lighting control and status monitoring.
FTR LIGHTSYNC CONTROL
Synchronizes compatible front and rear lights for a smarter, more connected lighting system.

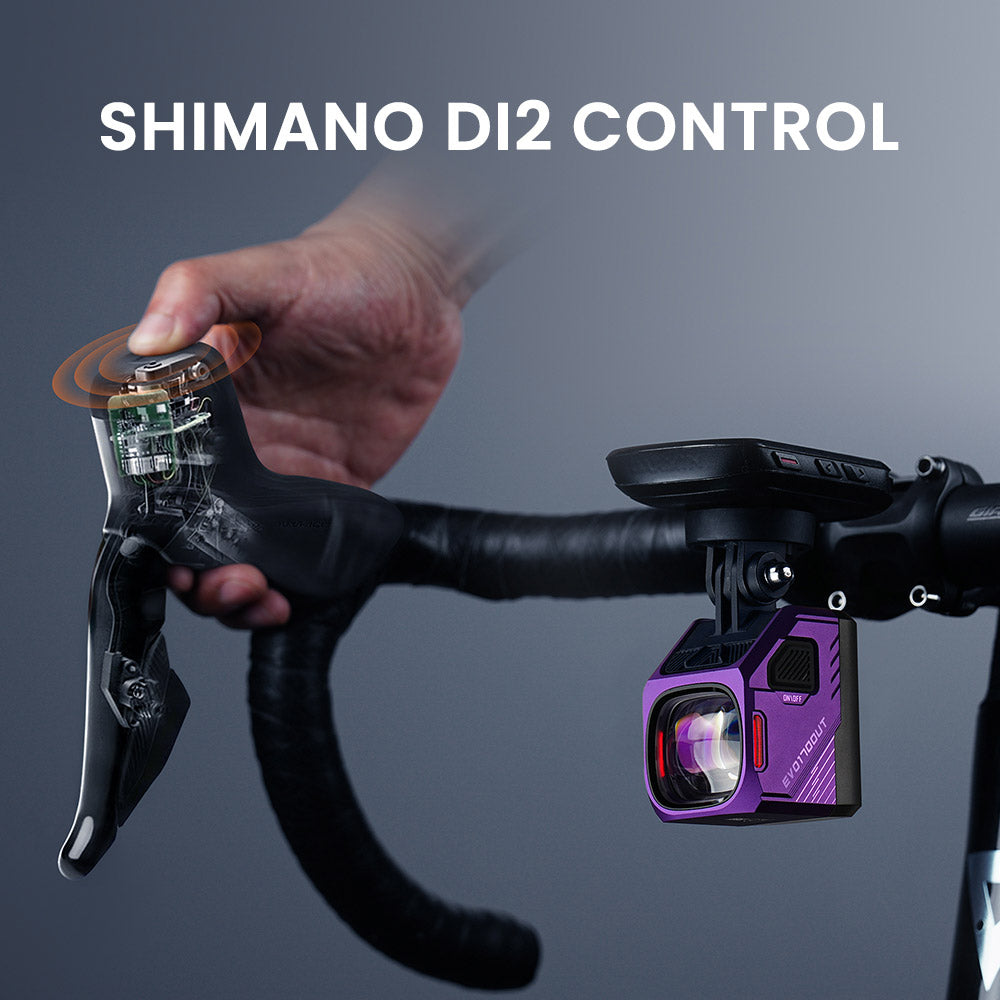

SHIMANO DI2 CONTROL
Operate the light directly from Shimano Di2 shift levers for effortless hands-on-bar control.

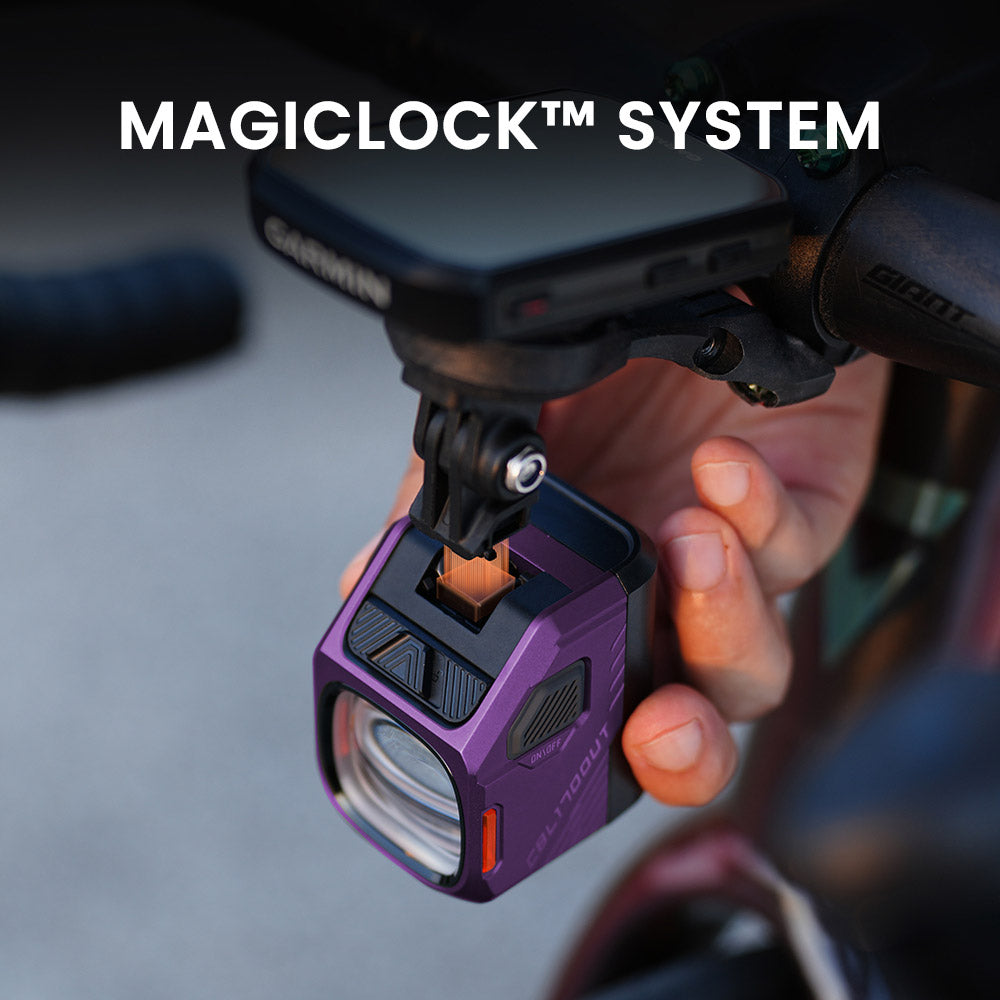

MAGICLOCK™ MOUNTING
Exclusive MagicLock™ system enables instant installation with secure, rock-solid retention on any ride.

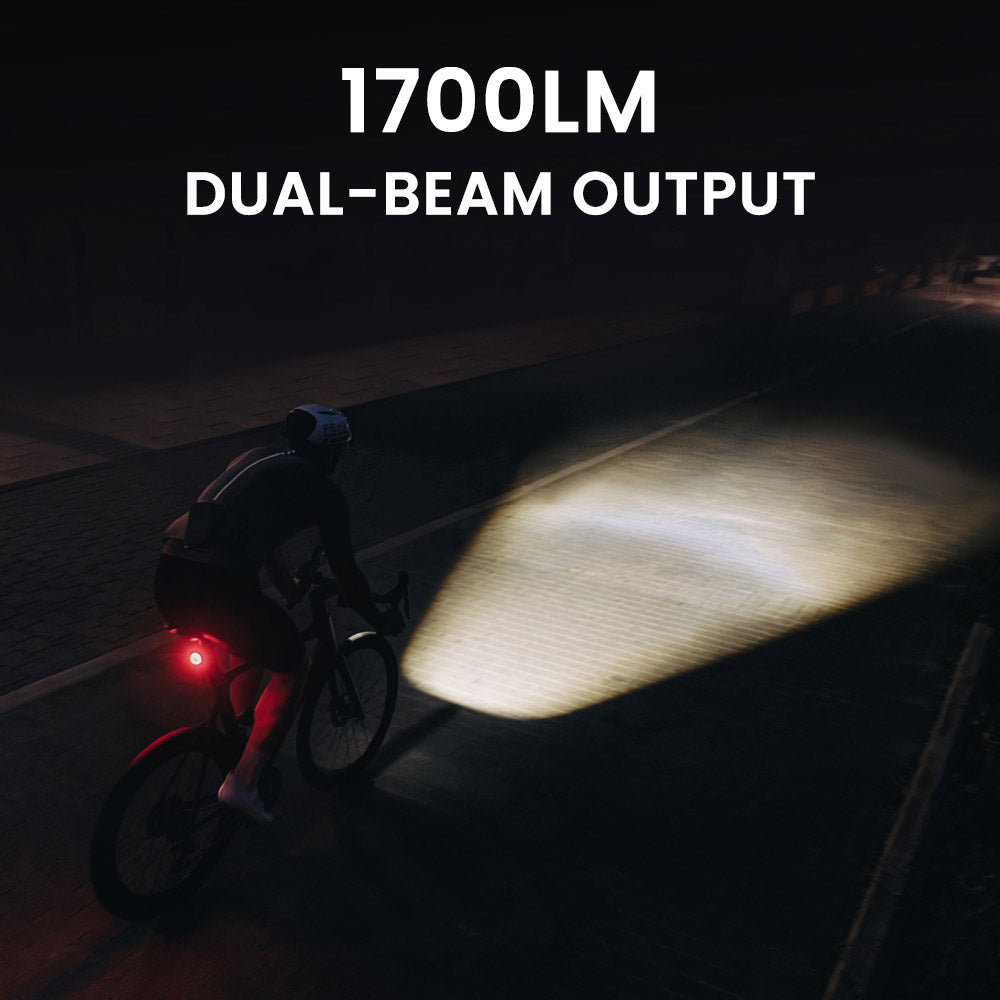

1700LM DUAL-BEAM OUTPUT
1700 lm high beam reaches up to 206 m, while the cut-off beam delivers wide, glare-free road illumination.
ADVANCED OPTICAL DESIGN
Large optical module with a blue-coated lens maximizes light transmission while enhancing visual performance.
LONG RUNTIME & FAST CHARGING
Dual 18500 batteries (5200 mAh) provide up to 17 hours of runtime and recharge in just 3 hours via USB-C.

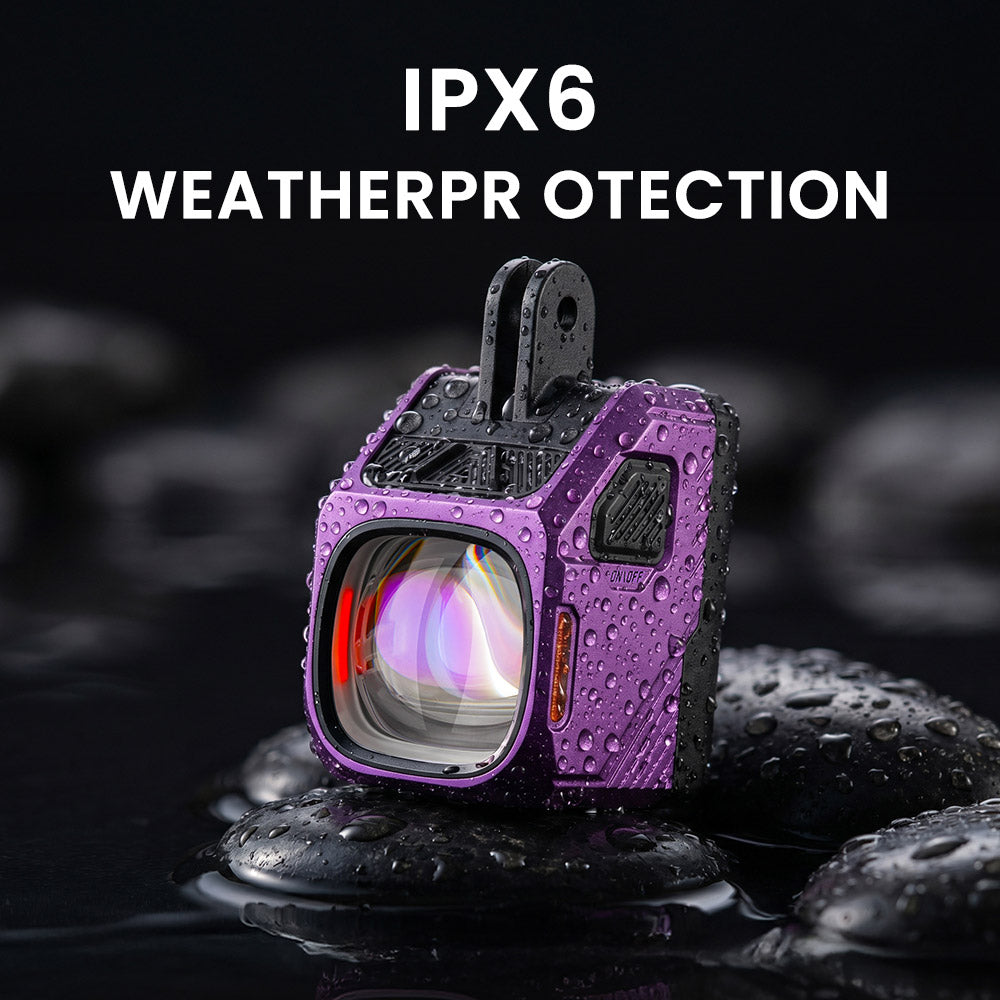

IPX6 WEATHER PROTECTION
IPX6-rated waterproof construction ensures reliable performance in rain and demanding riding conditions.
Enhanced Side Visibility
Enhanced side visibility improves safety in multi-angle traffic.
SPECIFICATIONS
MAX OUTPUT
1700 LM
RUNTIME
17 hours
BEAM PATTERN
High beam + Low beam
WATERPROOF
IPX6
WARRANTY
2 years
BATTERY CAPACITY
3.6V 5200mAh
CHARGING TIME
3 hours (5V, 2A)
BODY MATERIAL
Aluminum alloy + plastic
DIMENSIONS
44*51*57 mm
WEIGHT
175 g
PRODUCT COMPARISON
Compare different products based on their features.
| MODEL |
EVO 1700 UT
|

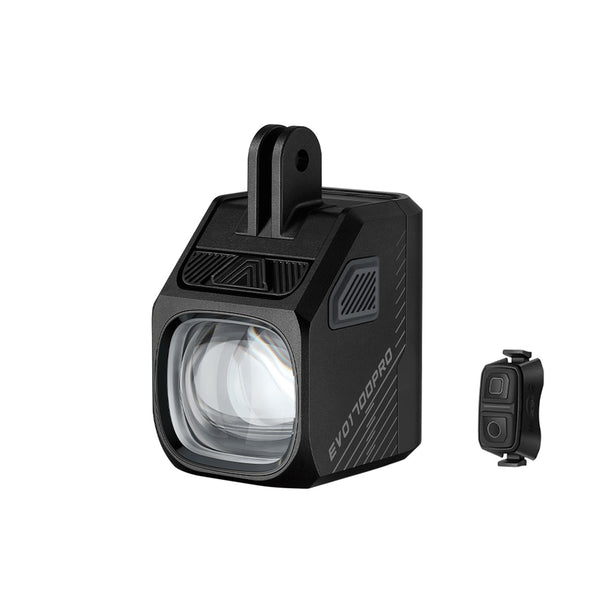

EVO 1700 PRO
|
EVO 1700
|
EVO 1700SD
|
|---|---|---|---|---|
| Max Lumens | 1700 LM | 1700 LM | 1700 LM | 1700 LM |
| Runtime | 3-17 hrs | 2.5-14 hrs | 2-11 hrs | 2-11 hrs |
| ANT+® | ⚫️ | ✖️ | ✖️ | ✖️ |
| Shimano Di2 Control | ⚫️ | ✖️ | ✖️ | ⚫️ |
| FTR LightSync Control | ⚫️ | ⚫️ | ✖️ | ✖️ |
| App Customization | ⚫️ | ⚫️ | ⚫️ | ⚫️ |
| Beam Pattern | Cut-off low beam | Cut-off low beam | Cut-off low beam | Cut-off low beam |
| Max Throw | 205 m | 205 m | 205 m | 205 m |
| Anti-Glare | ⚫️ | ⚫️ | ⚫️ | ⚫️ |
| Remote Control | ⚫️ | ⚫️ | ⚫️ | ✖️ |
| Beam Intensity | 10560 CD | 10520 CD | 10520 CD | 10520 CD |
| Waterproof Rate | IPX6 | IPX6 | IPX6 | IPX6 |
| Battery Capacity | 3.6V 5200mAh | 3.6V, 4400mAh | 3.6V, 4000mAh | 3.6V, 4000mAh |
| Charger | USB-C | USB-C | USB-C | USB-C |
| Charging Time | 3 hours（5V 2A） | 3 hrs (5V/2A) | 5 hrs (5V/1A) | 5 hrs (5V/1A) |
| Weight | 175 g | 165g | 151 g | 151 g |
| Dimension | 44*51*57 mm | 42*51*57 mm | 42*46*53 mm | 42*46*53 mm |
| Material | Aluminum alloy + plastic | Aluminum alloy + plastic | Aluminum alloy + plastic | Aluminum alloy + plastic |
| Mounting Type | Underneathed mount | Underneathed mount | Underneathed mount | Underneathed mount |
| Mounting System | Magnetic Snap-and-Lock | Magnetic Snap-and-Lock | Out-front mount | Out-front mount |
