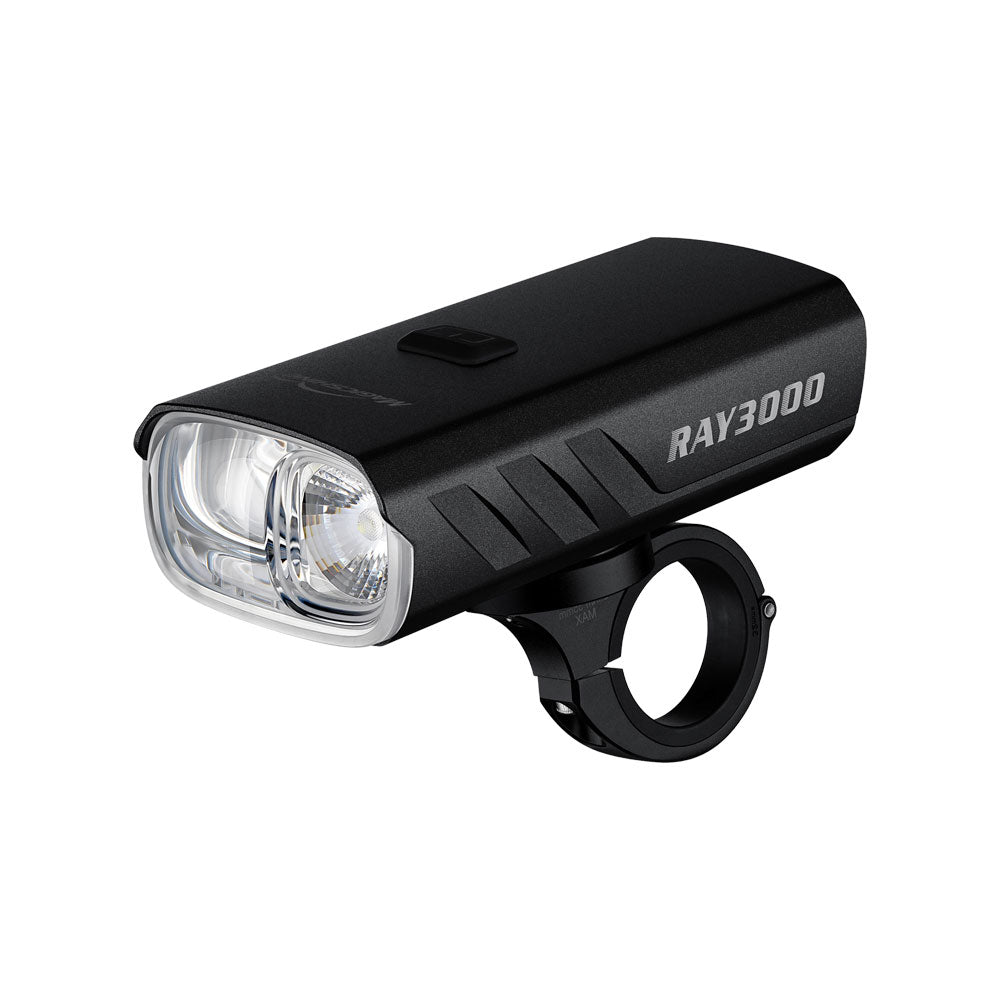

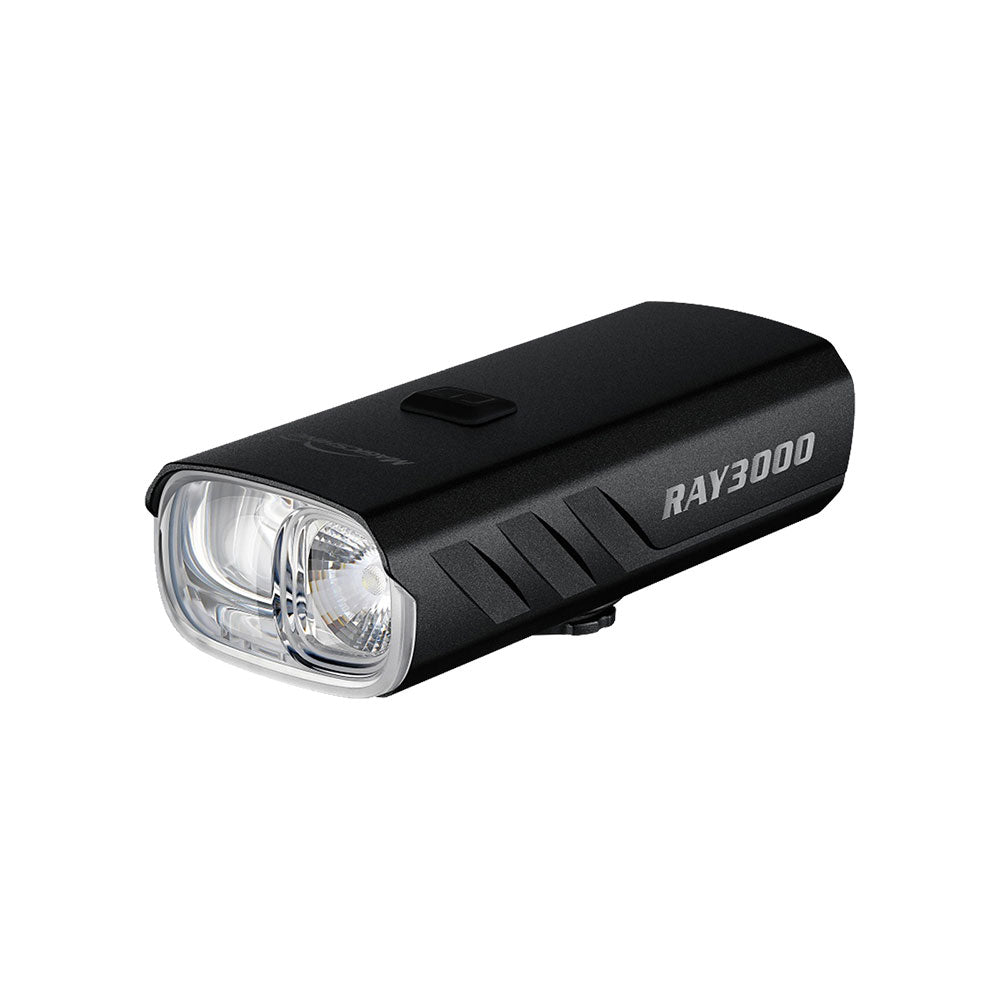

RAY 3000 HIGH-OUTPUT ENDURANCE BIKE LIGHT
- 3000 lumens with a 288m beam distance.
- Dual-beam optics for near and far visibility.
- Cut-off low beam prevents glare.
- 10,000mAh battery, up to 33-hour runtime.
- ANT+ light control and battery display.
- FTR syncs front and rear lights.
- Reverse charging for essential devices.
- 30W USB-C fast charging in 2 hours.
- ANT+ light control and battery display.
- FTR syncs front and rear lights.
- Secure aluminum quarter-turn mount.
- Instant Max Output for immediate visibility.
- One-piece aluminum body with IPX6 protection.
- Smart lockout prevents accidental activation.
- Memory mode and battery indicator.
| MODE | LUMENS | TIME (h:min) | |
|---|---|---|---|
| LOW BEAM |
LOW | 375LM | 22:30 |
| MEDIUM | 750LM | 10:30 | |
| HIGH | 1500LM | 4:30 | |
| HIGH BEAM |
LOW | 750LM | 13:30 |
| MEDIUM | 1500LM | 06:30 | |
| HIGH | 3000LM | 03:00 | |
| FLASH MODE | DAY FLASH | 0-1500LM | 33:00 |
| NIGHT FLASH | 165-900LM | 24:30 | |

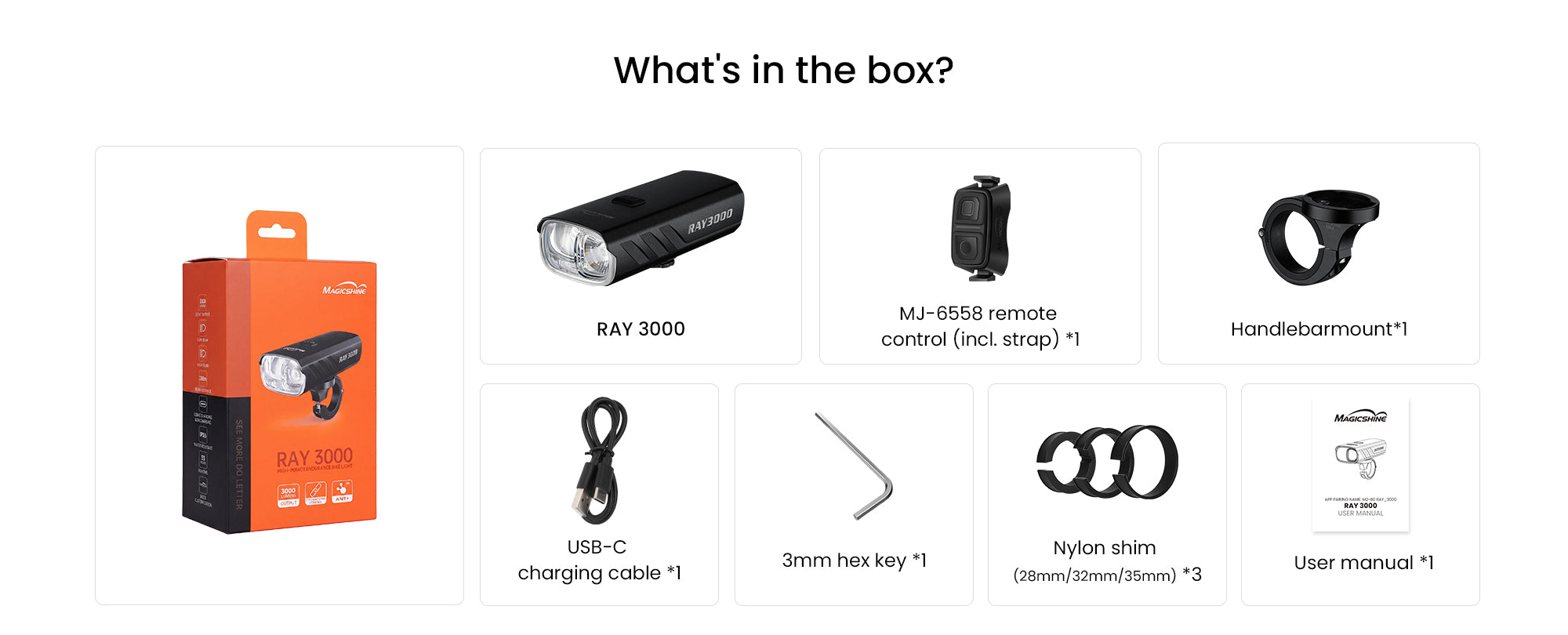

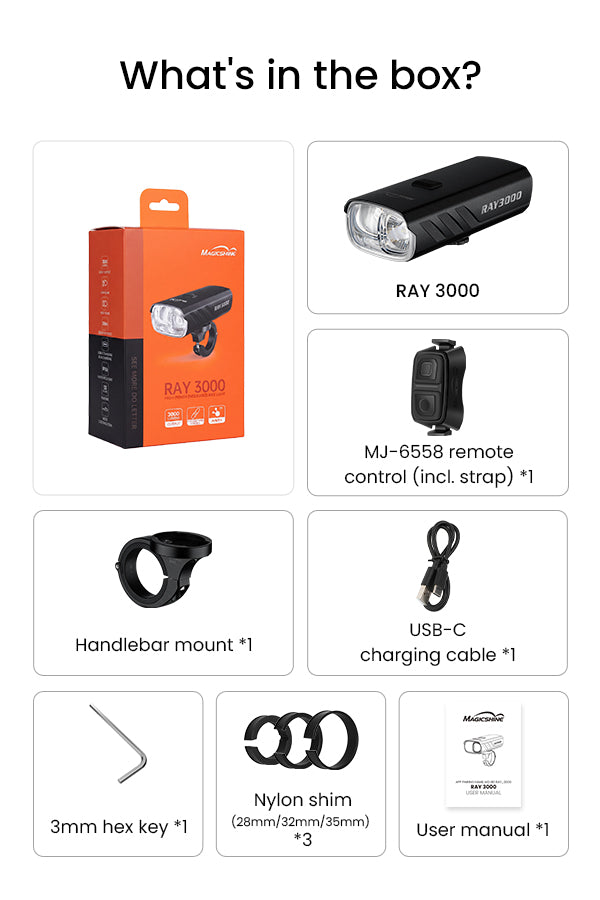

- RAY 3000 *1
- Handlebar mount *1
- MJ-6558 remote control (incl. strap) *1
- USB-C charging cable *1
- 3mm hex key *1
- Nylon shim (28mm/32mm/35mm) *3
- User manual *1
Fast, Reliable Delivery
Global shipping to most countries with real-time tracking. Orders are processed within 1-2 business days, and most arrive within 5-10 business days. Delivery times may vary by location. Learn more
Hassle-Free Warranty
Magicshine provides a straightforward, hassle-free warranty to save you some headaches. All prouducts come with their own unique warranty. Learn more
Easy Returns & Exchanges
Please refer to our Returns and Exchanges Policy for more details on a smooth returns process. Learn more
Go further with the all-new RAY 3000. Engineered for daring off-road adventures and epic long-distance journeys, it combines a powerful 3,000-lumen output with a high-capacity 10,000mAh battery to deliver reliable, high-performance lighting across varied terrain.
3000LM DUAL-BEAM OUTPUT
3000-lumen maximum output reaches up to 288 meters for confident high-speed riding and technical terrain recognition.

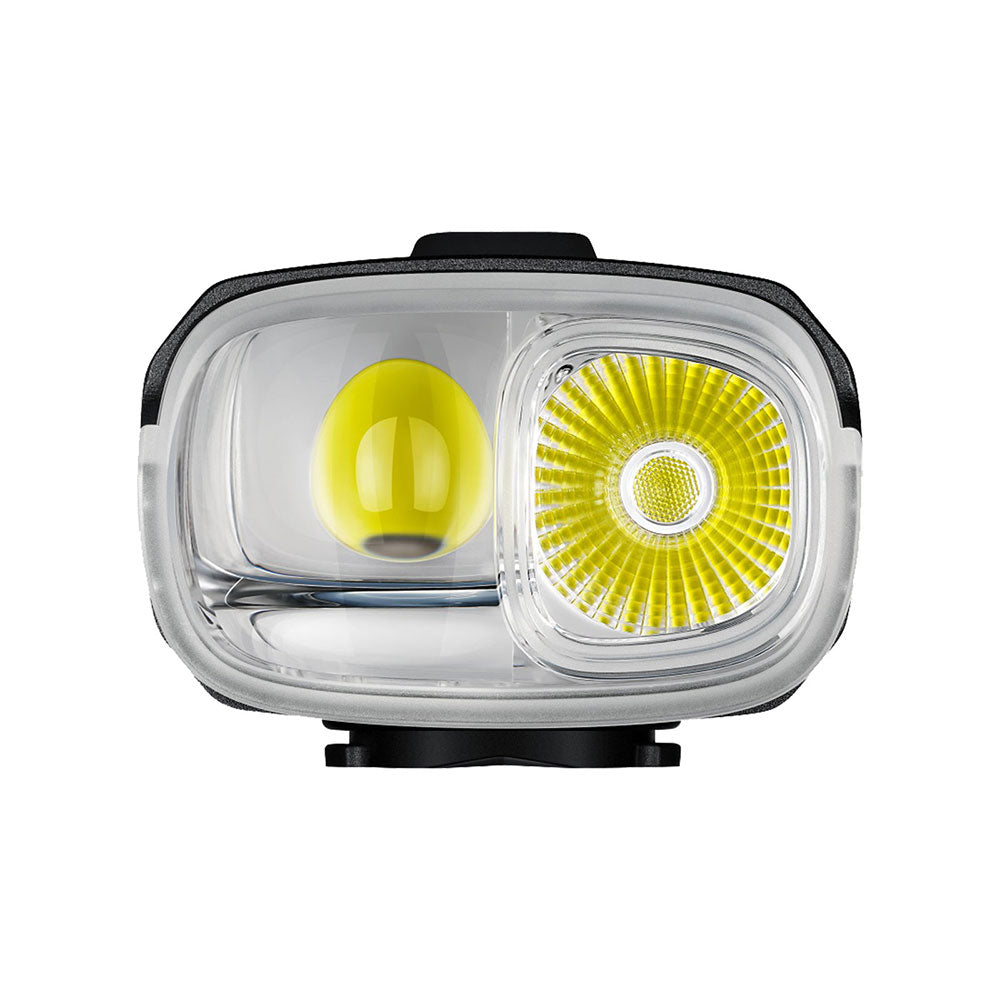

DUAL-BEAM OPTICAL SYSTEM
Dual-beam optical system integrates a cut-off low beam with a long-range high beam for near and far illumination.

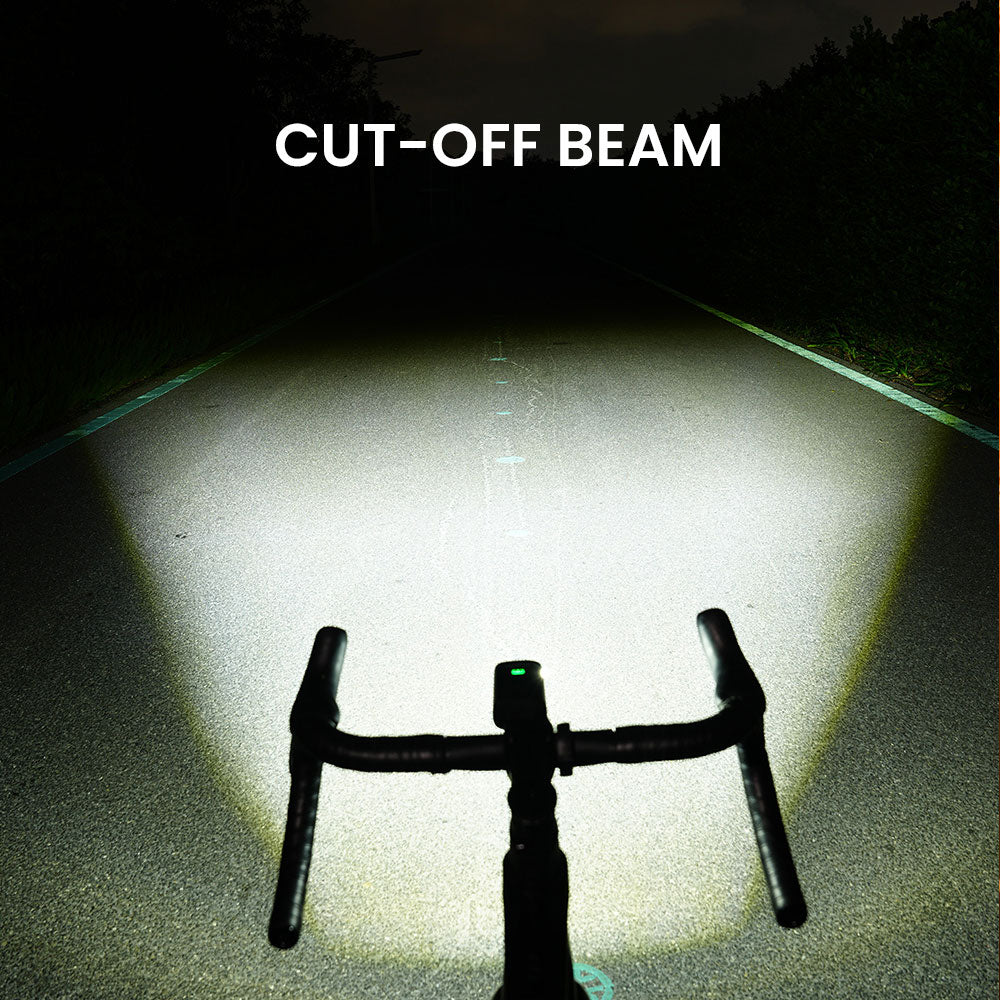

CUT-OFF BEAM DESIGN
Precision cut-off low beam delivers clear road illumination without dazzling oncoming traffic.
EXTENDED RUNTIME
Up to 33 hours of runtime with a 10,000mAh battery and ultra-fast 2-hour USB-C charging.

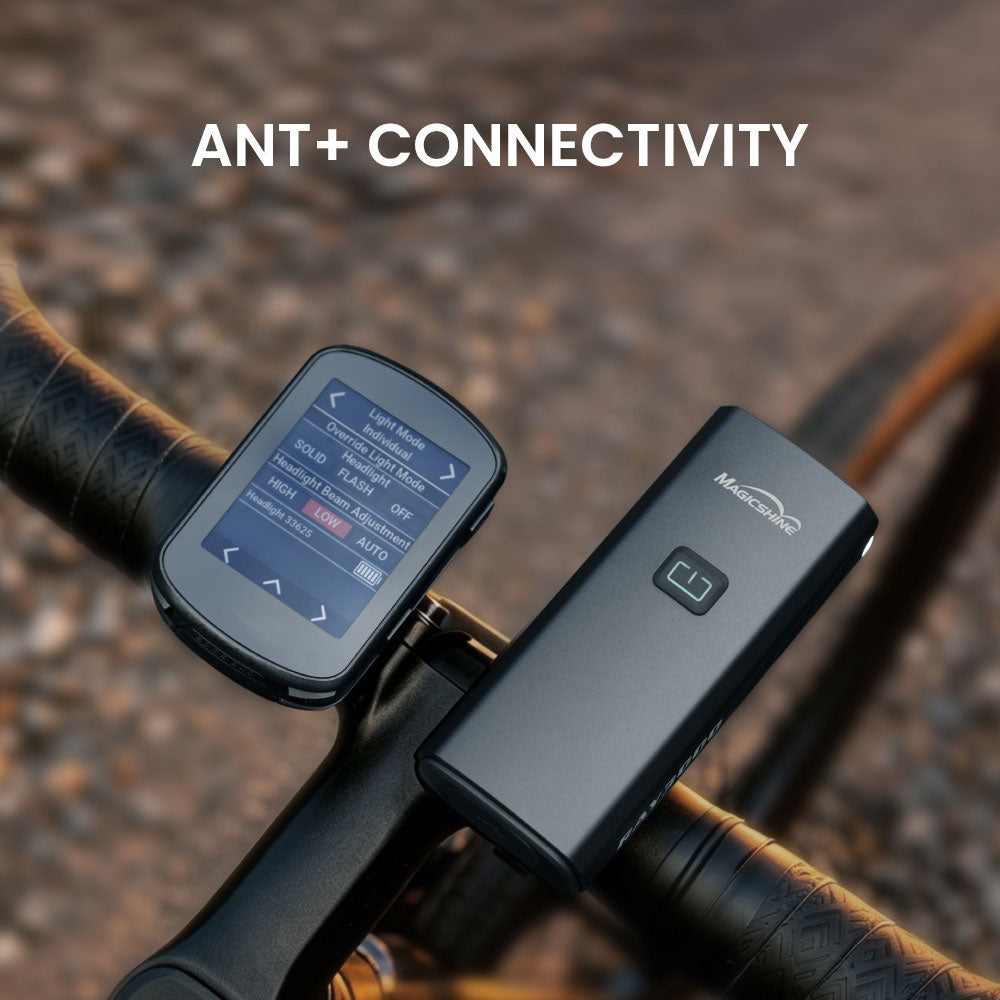

ANT+ CONNECTIVITY
ANT+ connectivity enables integrated light control and battery display on bike computers.
FTR LIGHTSYNC CONTROL
FTR function syncs front and rear lights through one-click remote control.

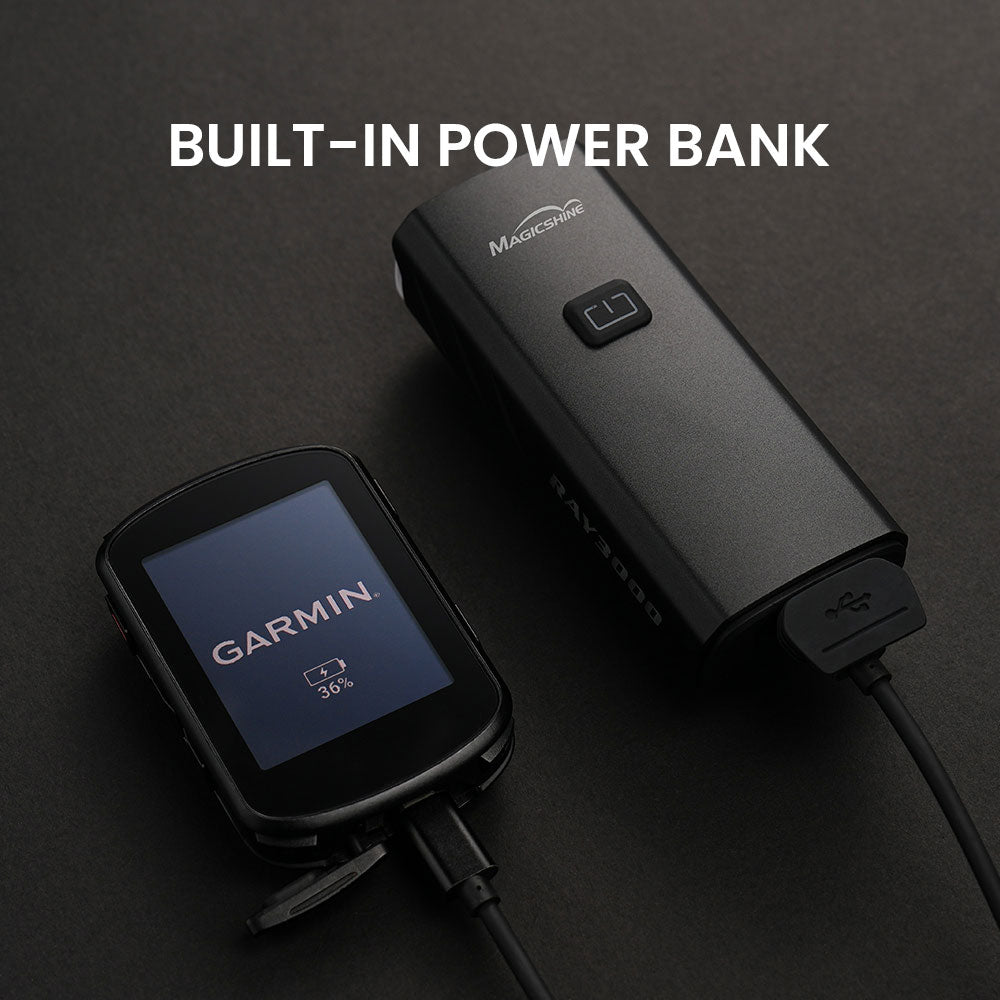

BUILT-IN POWER BANK
Reverse charging function to power essential devices such as bike computers and smartphones.

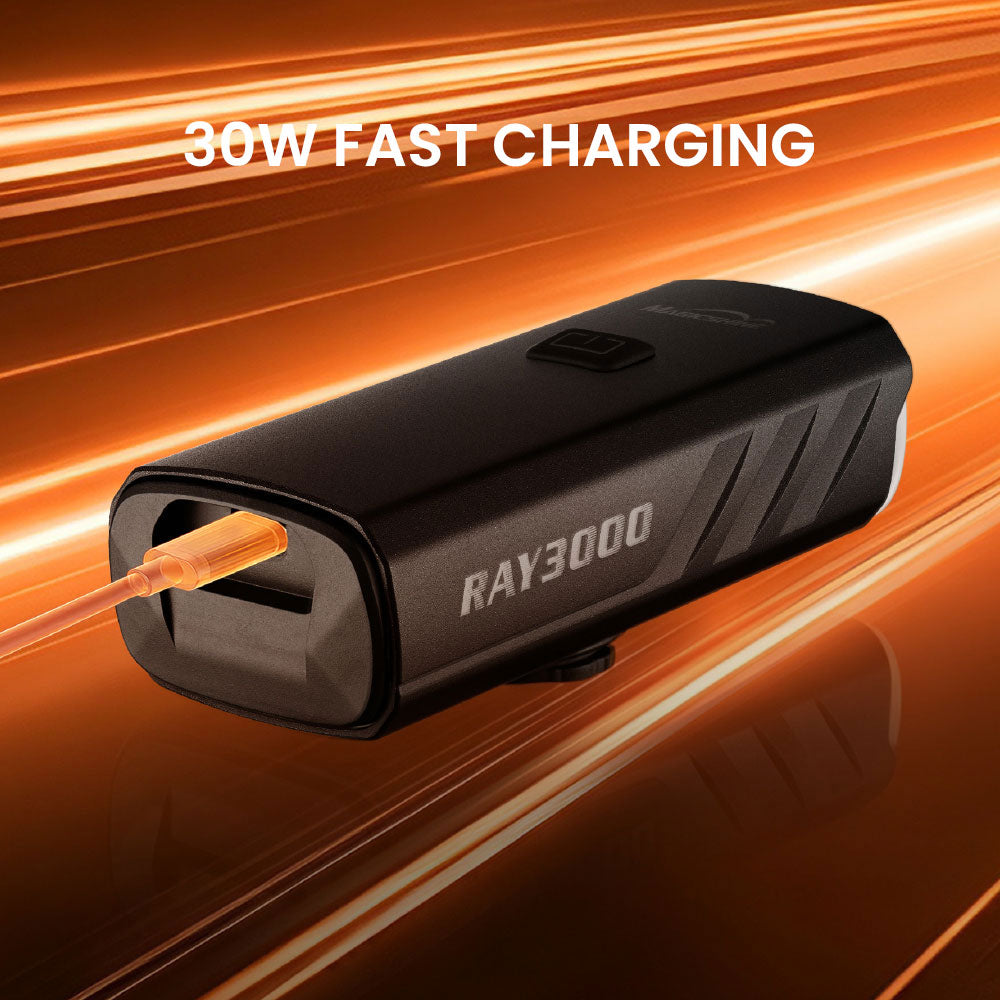

30W FAST CHARGING
30W USB-C fast charging fully recharges the light in approximately 2 hours.

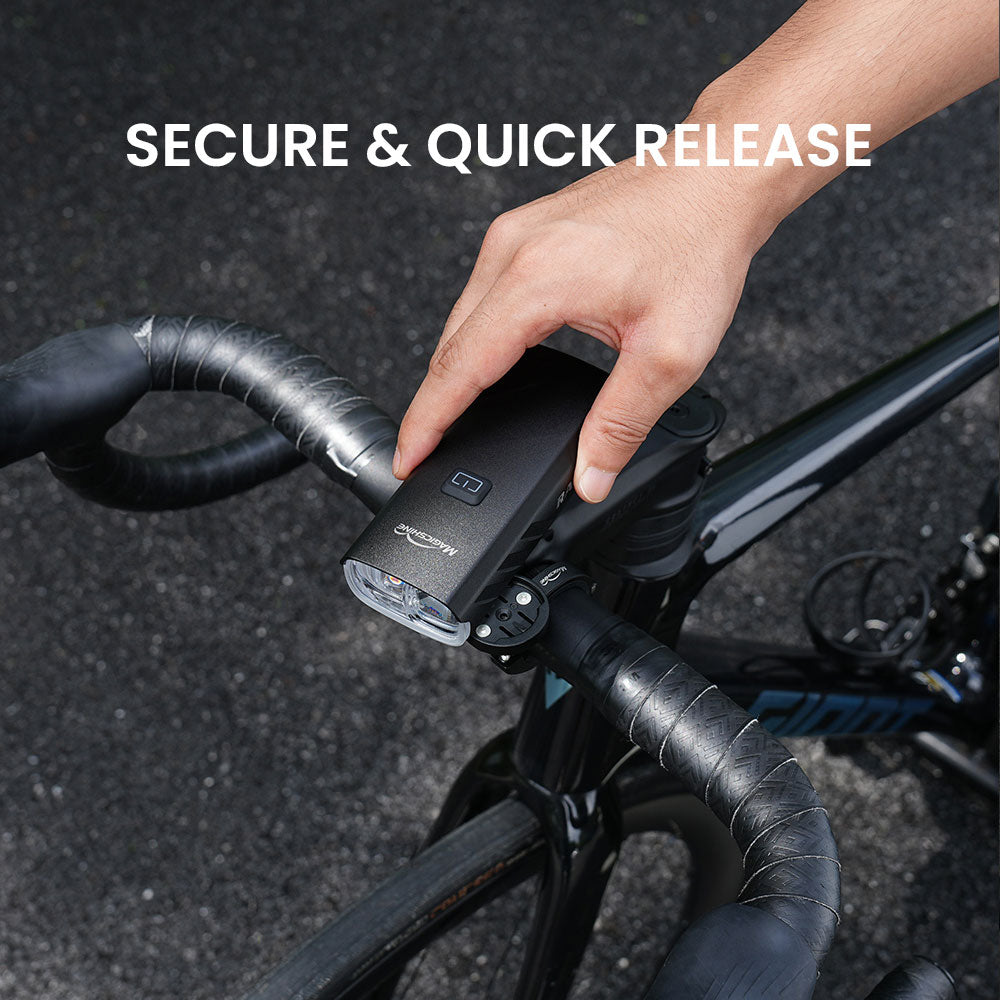

SECURE QUICK-RELEASE MOUNT
Rugged aluminum mount with a secure, impact-resistant fit and a quarter-turn quick-release.

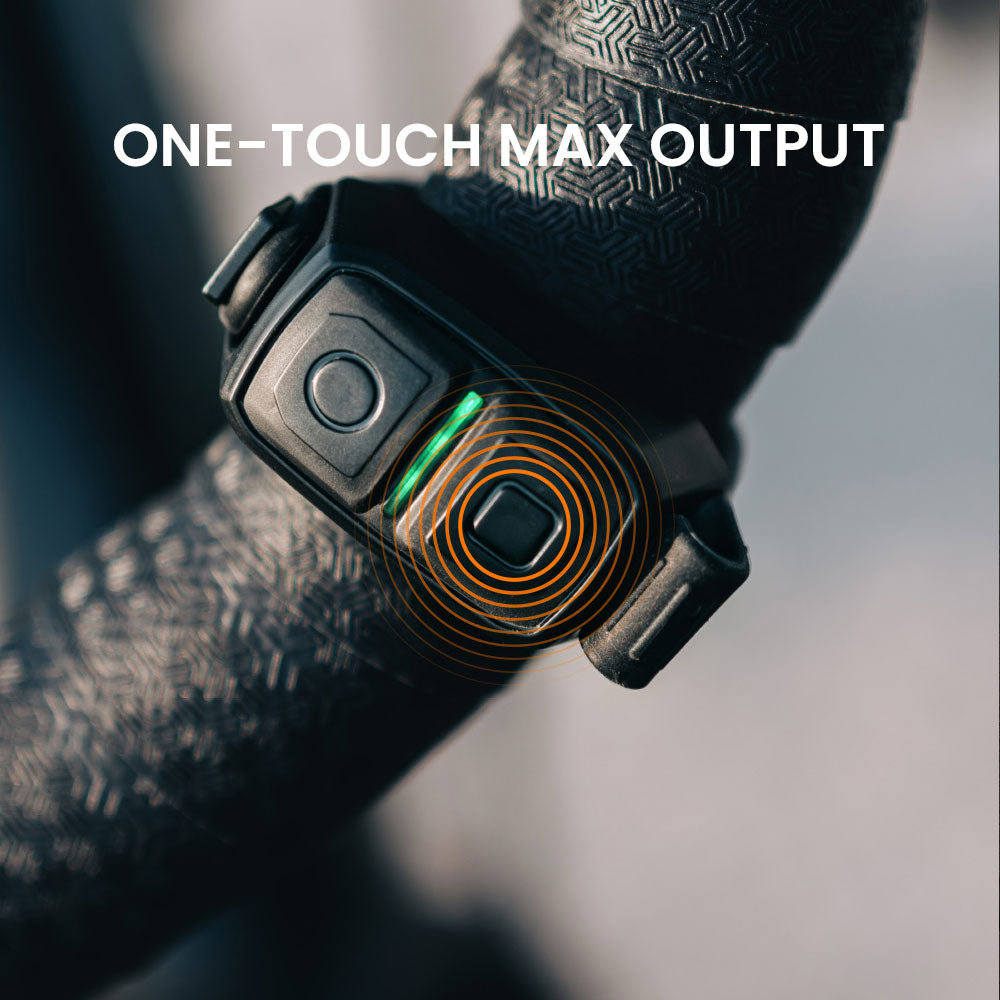

INSTANT MAXIMUM OUTPUT
Instant max output illuminates the road ahead and reveals hazards for faster reaction and safer riding.

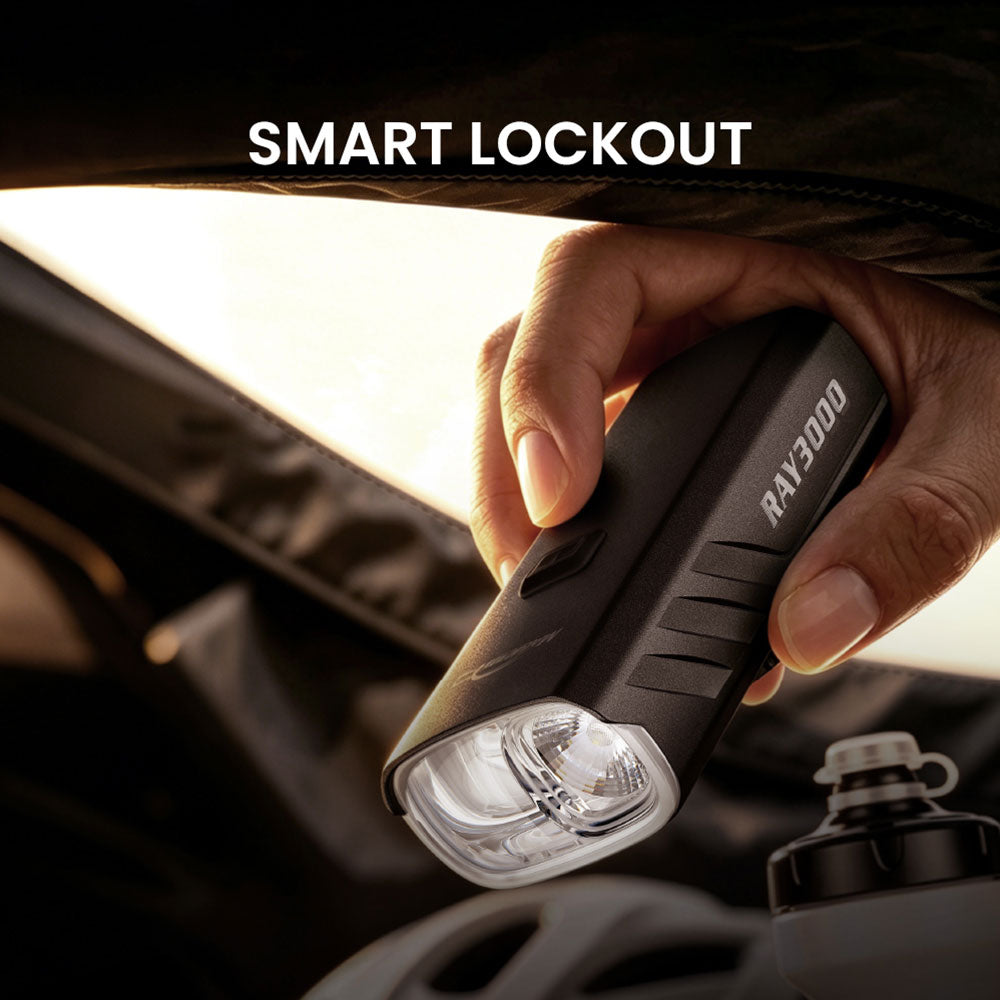

SMART LOCKOUT
Smart lockout prevents accidental activation during daily carry or storage.

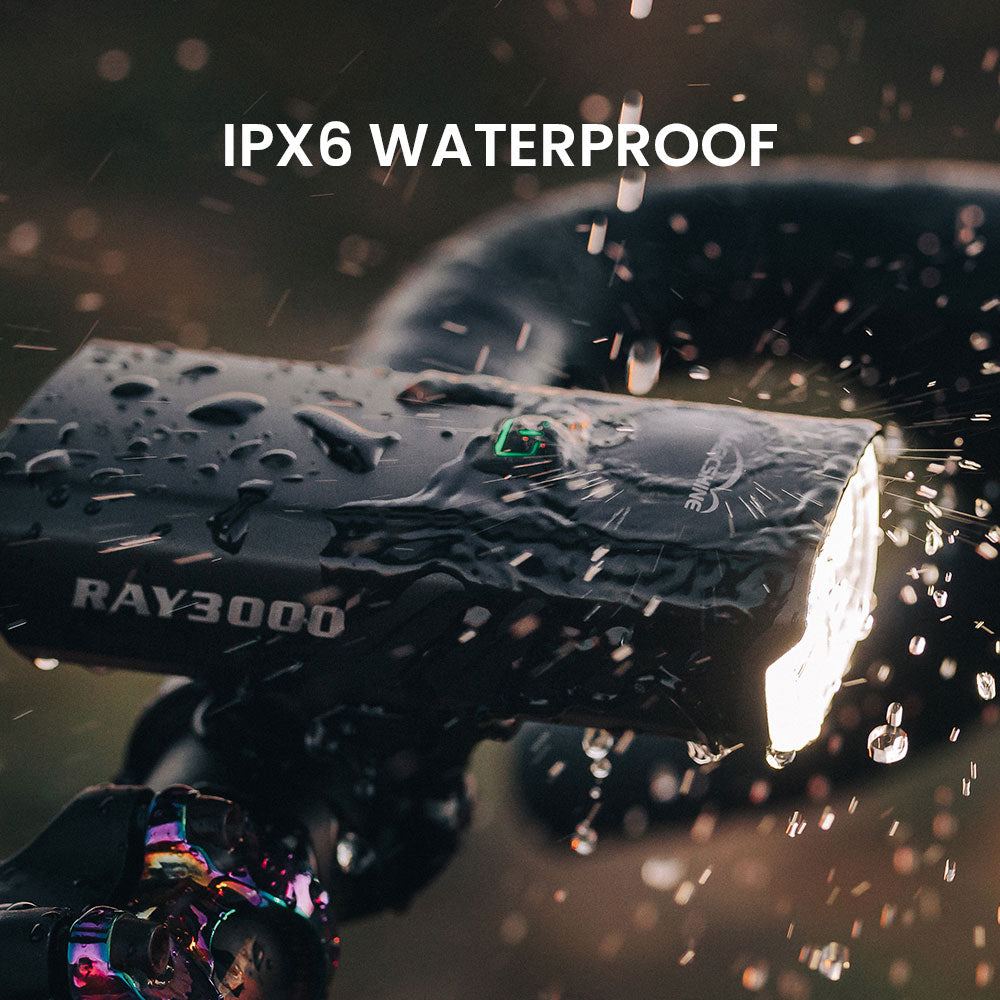

IPX6 WEATHER PROTECTION
One-piece aluminum construction with IPX6 waterproof protection for all-weather performance.
SPECIFICATIONS
MAX OUTPUT
3000 LM
RUNTIME
33 hours
BEAM PATTERN
High beam + Low beam
WATERPROOF
IPX6
WARRANTY
2 years
BATTERY CAPACITY
10000mAh (2*5000mAh cells in series: 5000mAh 7.3V)
CHARGING TIME
2 hours(15V 2A / 30W fast charging; 18W discharging)
BODY MATERIAL
Aluminum alloy+PC lens
DIMENSIONS
115*48*40 mm
WEIGHT
284 g
PRODUCT COMPARISON
Compare different products based on their features.
| MODEL |
RAY 3000
|
RAY 2600B
|
RAY 1600B
|
RN 3000
|
|---|---|---|---|---|
| Max Lumens | 3000 LM | 2600 LM | 1600 LM | 3000 LM |
| Runtime | 3-33 hrs | 2.2-15 hrs | 2.2-20 hrs | 2.2-62 hrs |
| ANT+® | ⚫️ | ✖️ | ✖️ | ✖️ |
| Shimano Di2 Control | ✖️ | ✖️ | ✖️ | ✖️ |
| FTR LightSync Control | ⚫️ | ⚫️ | ✖️ | ✖️ |
| App Customization | ⚫️ | ⚫️ | ⚫️ | ⚫️ |
| Beam Pattern | Cut-off low beam | Floodlight and Spotlight | Floodlight and Spotlight | Anti-Glare beam light |
| Max Throw | 288 m | 183 m | 140 m | 263m |
| Anti-Glare | ⚫️ | ✖️ | ✖️ | ⚫️ |
| Remote Control | ⚫️ | ⚫️ | ⚫️ | ✖️ |
| Beam Intensity | 20860 CD | 8400 CD | 5000 CD | 17412 CD |
| Waterproof Rate | IPX6 | IPX6 | IPX6 | IPX6 |
| Battery Capacity | 7.3V 2*5000mAh | 3.6V, 6700mAh | 3.6V, 5200mAh | 3.6V, 10000mAh |
| Charger | USB-C | USB-C | USB-C | USB-C |
| Charging Time | 2 hours（15V 2A / 30W fast charging） | 3.5 hrs (5V,2A) | 3.5 hrs (5V,2A) | 4 hrs (5V,2A) |
| Weight | 284 g | 190 g | 190 g | 279 g |
| Dimension | 115*48*40 mm | 96*41*27 mm | 96*41*27 mm | 107*48*32 mm |
| Material | Aluminum alloy+PC lens | Aluminum | Aluminum alloy + plastic | Aluminum alloy + plastic |
| Mounting Type | Handlebar mount | Handlebar mount | Handlebar mount | Handlebar mount |
| Mounting System | Garmin quarter turn mount | Garmin quarter turn mount | Garmin quarter turn mount | Garmin quarter turn mount |
